Description

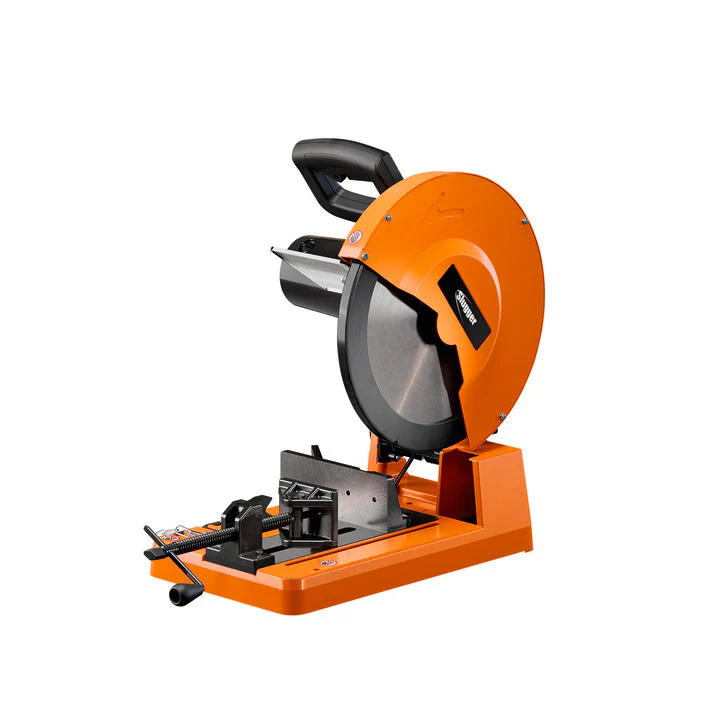

MCCS14 Slugger Metal Cutting Chop Saw 14 in. 120V – 72905361120
DETAILS
- Low speed high torque motor
- High precision durable steel construction
- Cast aluminum base
- Quick release table/base clamp cuts 0° to 45°
- Smooth bevel and angle cutting adjustments
- Eye protection plate.
- Table/base clamp with quick release
- Depth stop.
- Well balanced handle design for better control
- Integrated chip collection
TECHNICAL DATA
TECHNICAL DATA
Current/Voltage 120 V
Power consumption 1,800 W
No load speed 1,300 rpm
Saw blade Ø 14 [355] in[mm]
Arbor 1 [25.4] in[mm]
Max. depth of cut, angular 4-3/4 [121] in[mm]
Max. depth of cut, round 5 [130] in[mm]
Weight 53.79 [24.4] lbs[kg]
VIBRATION AND SOUND EMISSION VALUES Sound pressure level LpA 90,9 dB
Measurement uncertainty of the measured value KpA 3 dB
Sound power level LWA 103,9 dB
Measurement uncertainty of the measured value KWA 3 dB
Peak sound value LpCpeak 115,4 dB
Measurement uncertainty of the measured value KpCpeak 3 dB
Vibration value 1 αhv 3-way ah = 2,7 m/s²
Measurement uncertainty of the measured value Kα 1,5 m/s²
