Description

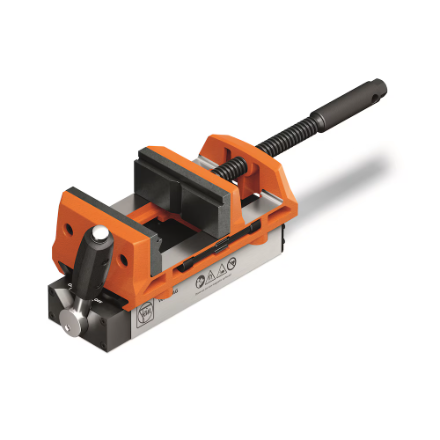

FEIN VERSAMAG VISE SET

Magnetic vise with a jaw width of 4 [100] in[mm].

Compact and powerful permanent magnet with vise for the tool-free clamping of various components on magnetic surfaces.

A powerful, portable vise: FEIN VersaMAG is compact and its narrow permanent magent adapts to any workstation.
Work safely with a wide range of options for use.
Modular system: The unique modular system ensures a secure hold in a variety of work situations and can always be extended with the required accessories.
The vise has a clamping range of 4-1/4 [108] in[mm] and a jaw width of 4 [100] in[mm].
Interchangeable clamping jaws in various heights for clamping larger materials such as sheet metal and pipes.
With an innovative two-rotor system, up to 1,754 lbf holding force for secure clamping to all magnetic surfaces – even in the thin sheet range [from 5/32[4] in[mm] thickness].
Clamping in tight spaces or level vertical surfaces? With its compact design and extra-narrow permanent magnets, challenging job sites are made a lot easier.
Precise alignment of the permanent magnets with the aid of 30% pre-magnetization.
Secure clamping of components for further processing with different power tools, e.g. angle grinders, screw guns, saws, MULTIMASTER, etc.

Jaw height: 1-9/16 [40] in [mm]

Jaw width: 4 [100] in [mm]

Magnetic holding force: 1754 [7,800] lbs[N]

Magnetic base dimensions: 8-3/8″ × 2-3/4″

Weight: 15.98 [7.25] lbs[kg]
