Description

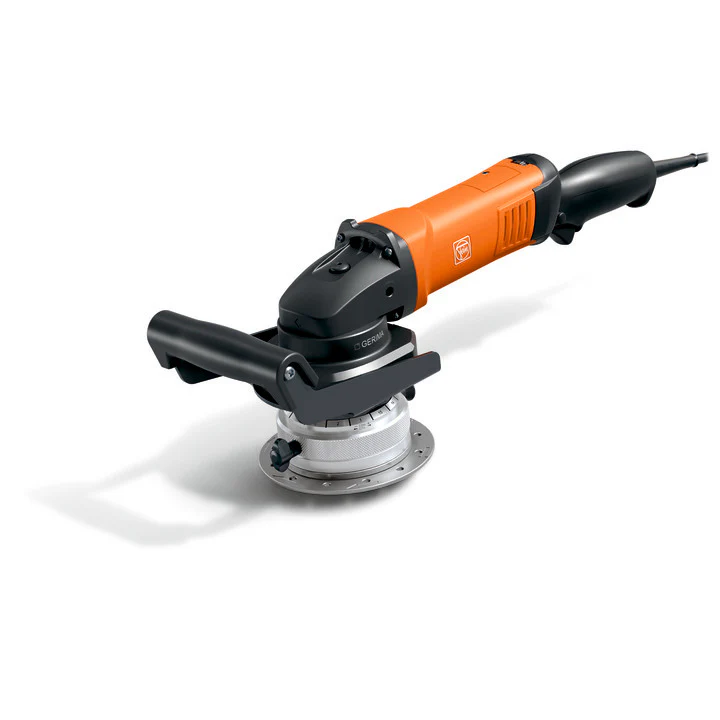

KFH17-15RT
Beveling machine
DETAILS
- Cutting output 30 – 80 percent higher and significantly reduced vibration with new booster technology.
- Spring technology: Cushioning of rotation force yields increased occupational safety through low-vibration work.
- FEIN ErgoGrip: Unique ergonomic concept with two-handed operation for low-fatigue work – patent pending.
- Extensive user protection due to soft start, restart protection, jam monitoring, and electronic overload protection.
- Efficient quick cutter change system for minimal interruptions.
- High removal rate and low effort.
- Extensive range of accessories for various materials such as steel, stainless steel and non-ferrous metals.
- Above-average service life of the indexable inserts due to 8-fold or 16-fold usability.
- AutoStop dead man’s switch
TECHNICAL DATA: |
|
| Power consumption | 1,560 W |
| No load speed | 2,300 – 7,500 rpm |
| Max. chamfer length at 45° | 9/16 [15] in[mm] |
| Max. chamfer height at 45° | 7/16 [10.6] in[mm] |
| Chamfer angle | 30° / 37.5° / 45° / 60° |
| Radius | 5/64, 1/8, 5/32 [2, 3, 4] in[mm] |
| Cutting head mounting | 3×2 KX insert |
| Support plate Ø | 5-3/8 [137] in[mm] |
| Cable with plug | 13.1 [4] ft[m] |
| Weight | 14.11 [6.40] lbs[kg] |
