JHM USA10

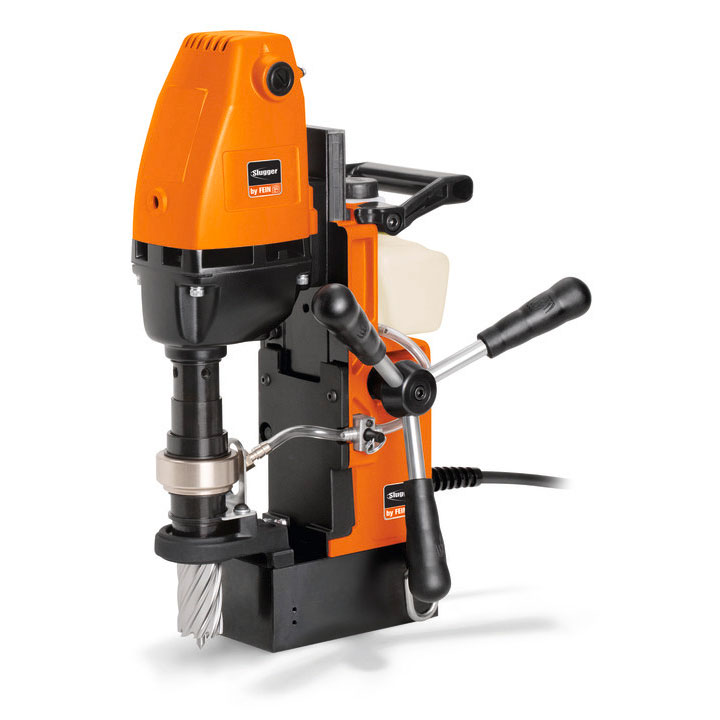

Magnetic Drill Endurance 1-1/2 in. 120V – 72725261124
DETAILS
- Uniform-torque motor for demanding core drilling.
- High concentricity and positive slug ejection due to special bore spindle guides.
- Solid, massive construction in die-cast aluminum for work under difficult conditions.
- Integrated coolant tank ensures high core drill tool life.
- Internal motor cable routing.
- Accessory handle for easy carrying of tool.
- Hand feed wheel can be mounted on either side.
- Smart magnet circuitry will not allow motor to start without sufficient magnetic force.
TECHNICAL DATA
Power consumption
1,050 W
Power output
530 W
Cutter holder
3/4″ straight shank
Full load speed
330 rpm
No load speed
480 rpm
HSS cutter max. dia.
1-1/2 [38] in[mm]
Cutter max. drilling depth
2 [50] in[mm]
Twist drill max. dia.
1/2 [12] in[mm]
Stroke
2-9/16 [65] in[mm]
Magnetic holding force
2023 [9,000] lbs[N]
Cable with plug
12.5 [3.8] ft[m]
Weight
31.75 [14.40] lbs[kg]
VIBRATION AND SOUND EMISSION VALUES
Sound pressure level LpA
87.5 dB
Measurement uncertainty of the measured value KpA
5 dB
Sound power level LWA
98.5 dB
Measurement uncertainty of the measured value KWA
5 dB
Peak sound value LpCpeak
100.1 dB
Measurement uncertainty of the measured value KpCpeak
5 dB
