Description

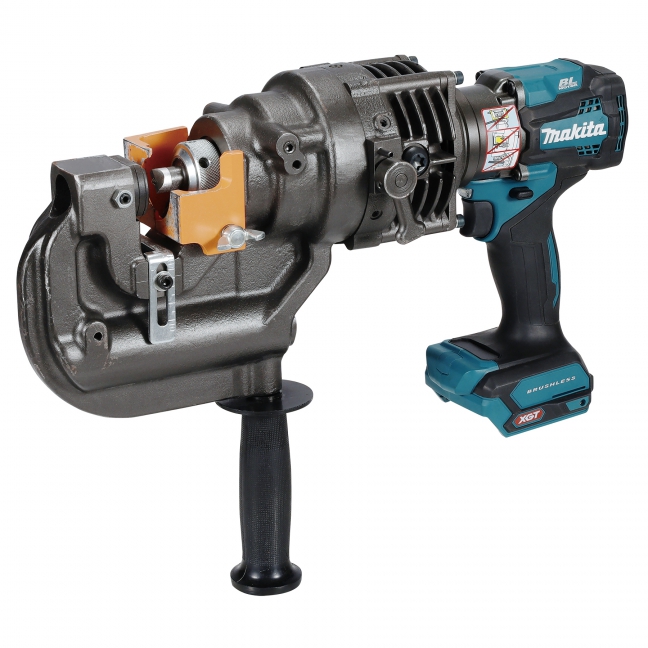

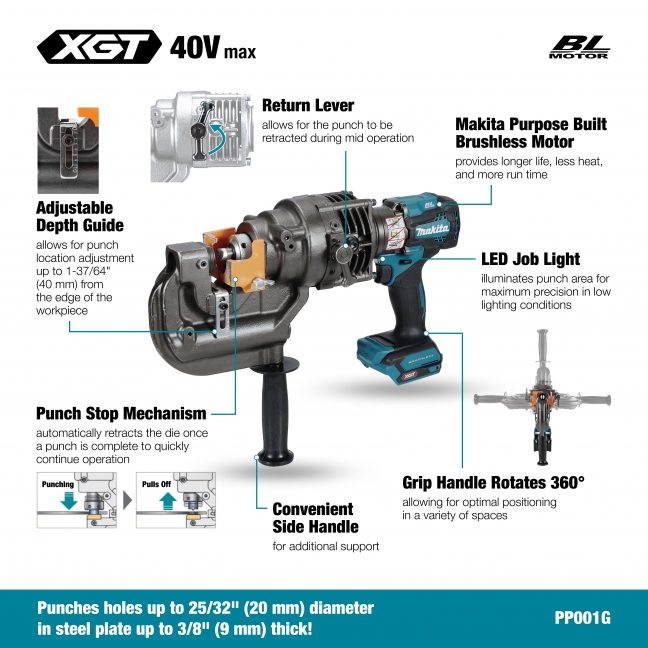

Punches holes up to 25/32″ (20 mm) diameter in steel plate up to 3/8″ (9 mm) thick!
High-efficiency punching

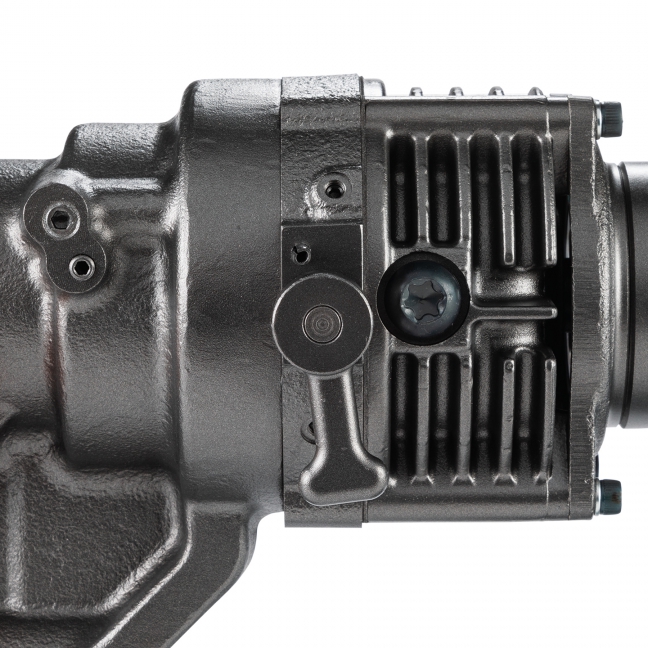

- Automatic punch return feature automatically retracts punch to its initial position once cycle is complete to enable rapid continuous hole punching

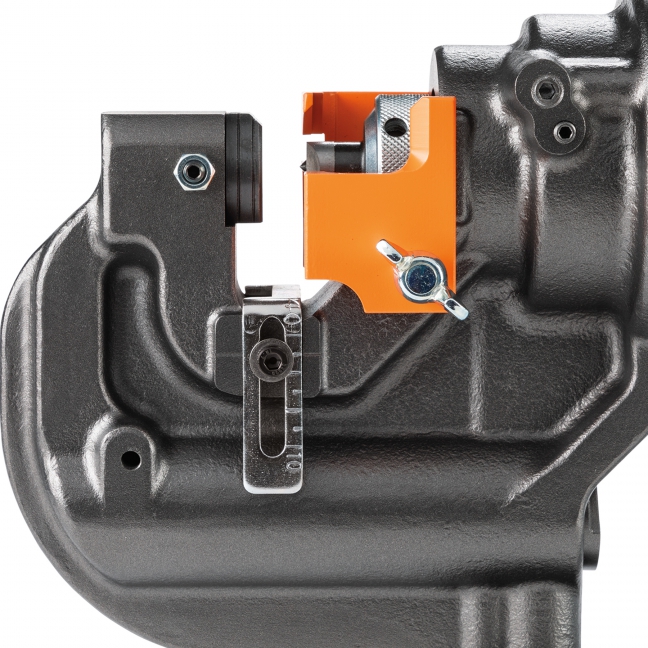

- Adjustable depth guide enables adjustment up to 1-37/64″ from the edge of the material

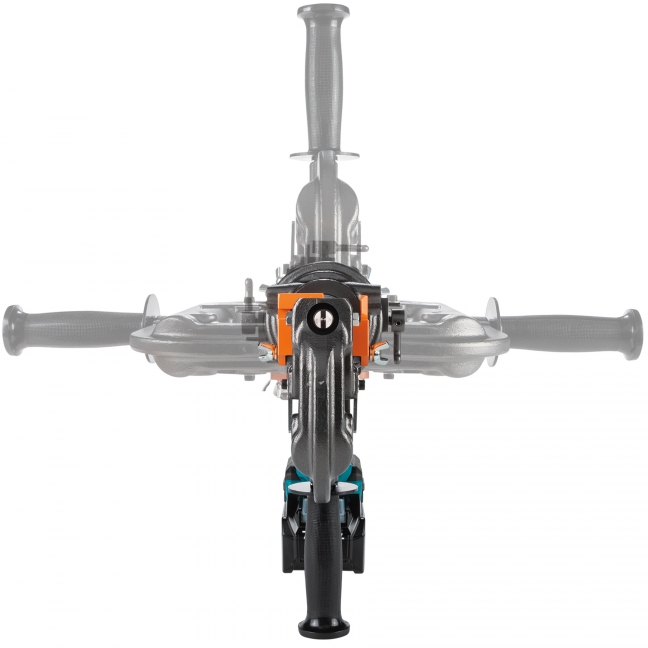

- 360° rotatable motor section for optimal positioning in tight spaces

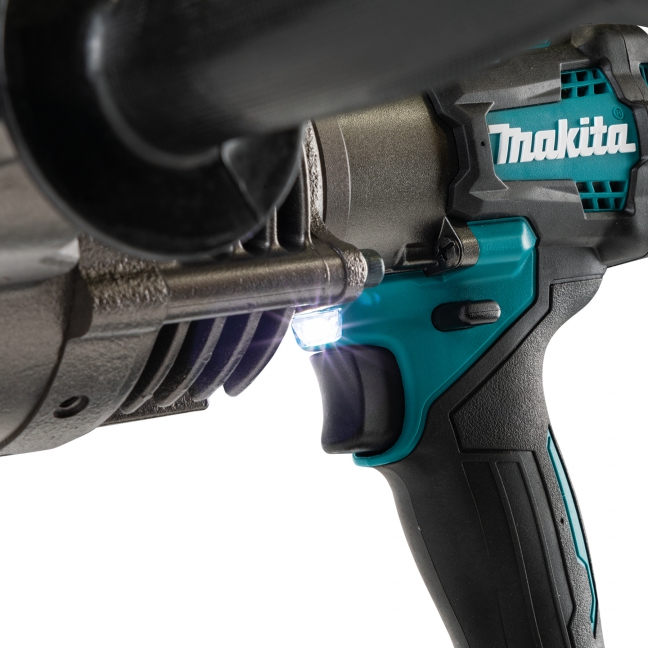

- LED job light illuminates punch area for maximum precision in low lighting conditions
- Ergonomic soft rubber grip design for vibration absorption and comfortable operation
Items Included: Tool Only. Batteries and Charger Sold Separately. Punch 14 (SC05340120), Die SB-14 (SC00000219), Nut Retaining Bar (SC03505300), Hex Wrench 3 (SC00000103), Hex Wrench 4 (SC00000104), Wrench 8 – 10 (SC00000166), Plastic Carrying Case
Specifications
| Battery Capacities | 40V Max Li-Ion |
| Maximum Hole Size and Thickness | Steel-Diameter 25/32″ (20 mm), Thickness 3/8″ (9 mm); Stainless Steel-Diameter 25/32″ (20 mm), Thickness 15/64″ (6 mm) |
| Maximum Throat Depth | 1-37/64″ (40 mm) |
| Shape of Hole | Round / Oblong |
| Overall Length | 15-5/8″ (398 mm) |
| Net Weight | 24.1 lbs (10.9 kg) |
Shipping Dimensions (Length x Width x Height) & Weight : 220.5 In. X 173.2 In. X 80.7 In. Weight : 25.57 Lb.
Items Included:Tool Only. Batteries and Charger Sold Separately. Punch 14 (SC05340120), Die SB-14 (SC00000219), Nut Retaining Bar (SC03505300), Hex Wrench 3 (SC00000103), Hex Wrench 4 (SC00000104), Wrench 8 – 10 (SC00000166), Plastic Carrying Case
SC03505300
SC00000103
SC00000104
SC00000166
Images shown may not represent the full listing or the true size of included items.
