Description

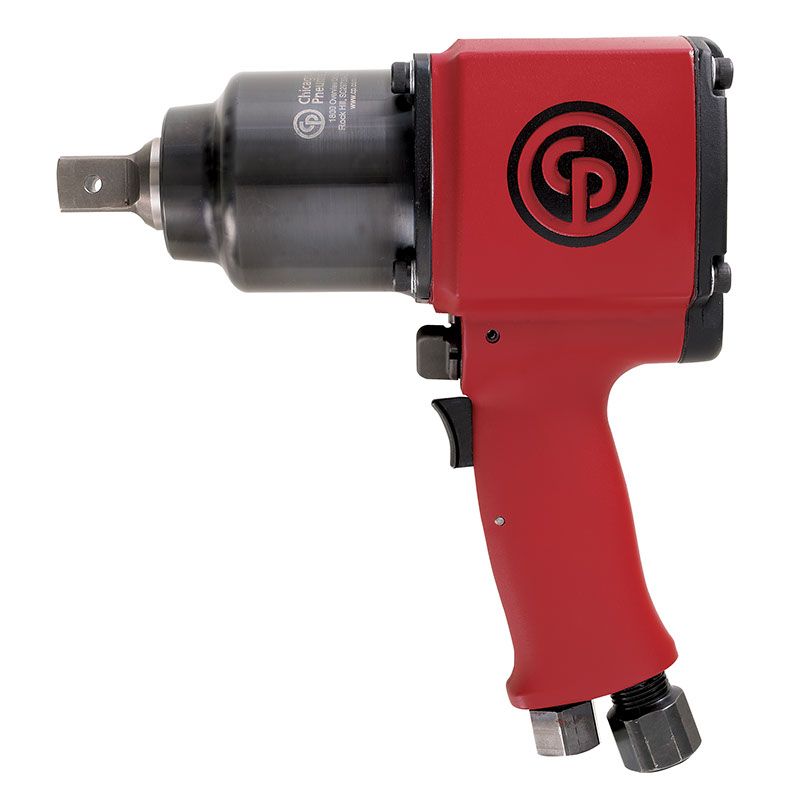

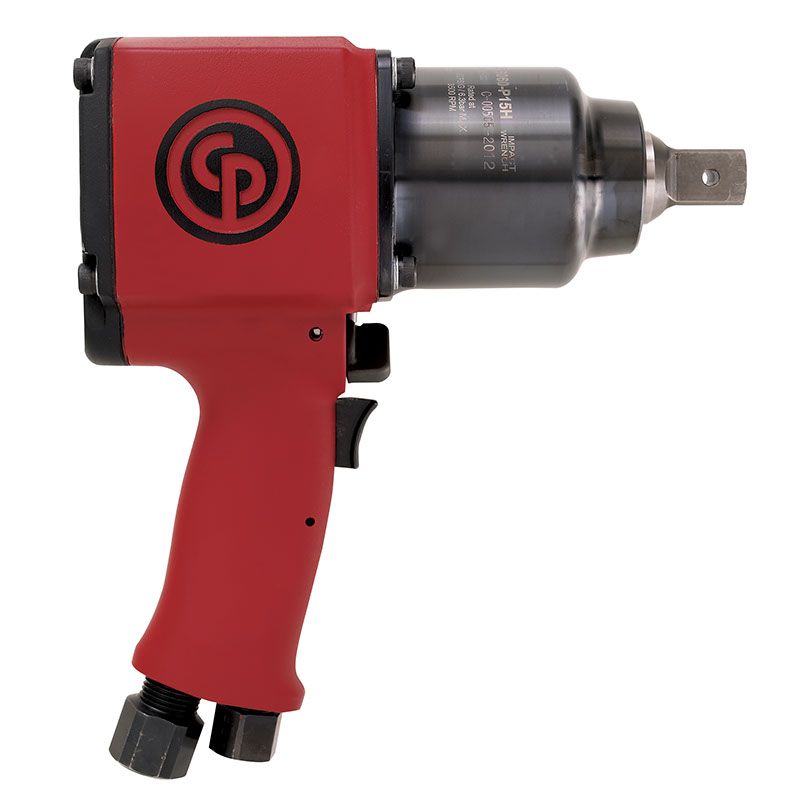

CP6060-P15H – 3/4″ PISTOL PNEUMATIC IMPACT WRENCH – 6151590090
The CP6060-70 series impact wrench features a 3/4″ and 1″ square drive, and delivers reverse torque up to 1490 Nm / 1100 ft.lb. Designed with the 2-jaw clutch mechanism, aluminium body, and steel clutch housing, it provides strength and compactness to work comfortably in the most demanding industrial environments. The CP0660-70 Series includes 3 models : 3/4″ hole, 3/4″ ring and 1″ hole.
Technical Specifications
Torque
Max working torque fwd : 900 ft.lbf
Max torque reverse: 1100 ft.lbf
Min working torque fwd: 199 ft.lbf
Torque limited: No
Air information
Air inlet thread size (in): 3/8
Max dynamic air working pressure: 90 psi
Min hose diam (16 ft hose length): 0.5 in
Min hose diam (5 m hose length): 13 mm
Noise & vibrations
Sound Power: 103 dB(A)
Sound Pressure: 92 dB(A)
Uncertainty vibration-K: 13.5 ft/s²
Vibration (m/s²): 13.9
Vibration: 45.6 ft/s²
Speed
Free Speed : 4000 rpm
Air consumption at free speed: 74 cfm
Size & Weight
Length (L): 8.74 in
Power weight ratio: 280 Nm/kg
Side to Center : 1.46 in
Weight: 11.6 lb
Design & Functions
Blow per minute: 1100
Body: Aluminium
Clutch housing: Steel
Clutch lubrication type: Grease
Handle type: Pistol
Impact mecanism: 2-jaws
Main Material type: Aluminium
Output drive size (in): 3/4
Output drive type: Sq
Output retainer type: Hole
Starting system” Trigger
