Description

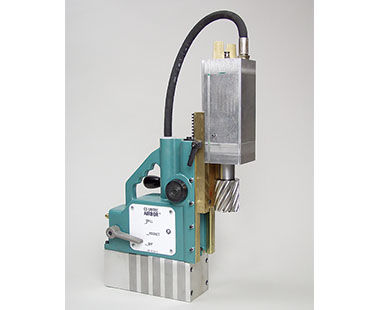

AB-4300 -AIRBOR™ Portable Pneumatic Magnetic Drill PNEUMATIC POWER FOR HAZARDOUS ENVIRONMENTS – ATEX APPROVED FOR EX ZONE
Model Comparision
| Motor Power (Pneumatic) | AB -4300-2 1.6HP |
|---|---|
| Air Consumption @ 90 PSI | 64 CFM (1/2″ NPT Air Connection) |
| Hole Capacity | 2-1/16″ dia. |
| Stroke Length with Cutters | 4-7/8″ |
| Stroke Length with Twist Drill | 1-3/4″ |
| No Load Speed | 400 RPM |
| Magnet Base Size | 8-3/4″ W x 3-1/2″ L |
| Dimensions | 13-1/2″ H x 12-1/2″ L x 4-3/4″ W |
| Height – Closed | 13-1/2″ |
| Height – Open | 17-1/2″ |
| Magnetic Force (1″ Plate) | 1600 lbs. |
| Arbor Bore | 3/4″ Weldon Shank |
| Weight | 38 lbs. (18kg) |
| Automatic Lubrication | Included |
- ATEX Certified for hazardous environments
- Fail-safe permanent magnet activated on/off by air pressure – if air flow is lost, magnet will not disengage
- Geared chuck (part no. IBC 18) for twist drilling
- Extra rack (order AB-4300-2R) for extended stroke length
- Uses annular cutters
- Lubricants ideal for cutting steel, stainless steel and hard metals
