2236QTIMAX - DXS2 1/2" Air Impact Wrench, Quiet, 1500 ft-lb Torque, Titanium Hammercase, Friction Ring Retainer, Pistol

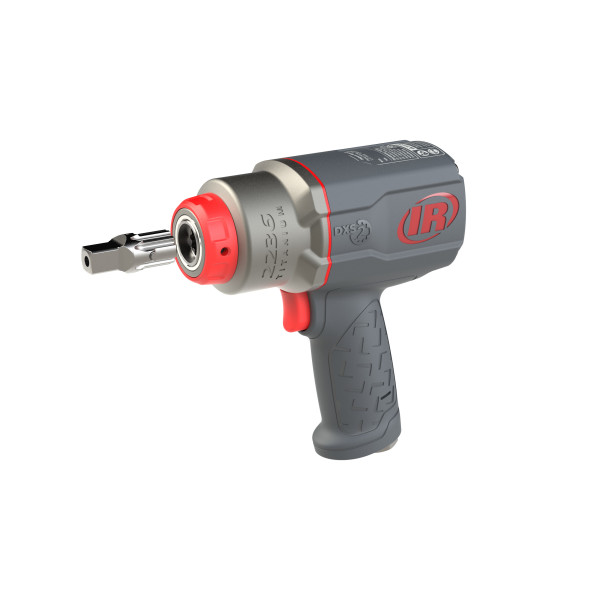

2236QTIMAX – DXS2 1/2″ Air Impact Wrench, Quiet, 1500 ft-lb Torque, Titanium Hammercase, Friction Ring Retainer, Pistol

$549.98

DXS2 1/2″ Air Impact Wrench, Quiet, 1500 ft-lb, Titanium Hammercase, Friction Ring Retainer

Category:

Description

2236QTIMAX

DXS2 1/2″ Air Impact Wrench, Quiet, 1500 ft-lb Torque, Titanium Hammercase, Friction Ring Retainer, Pistol

Product Description



Ingersoll Rand has delivered the gold standard in pneumatic tools for almost 100 years — and the performance, durability, and power of the 2236 1/2” pneumatic impact is no different. Our patented Drive Xchange System™ lets you swap out anvils without torque-zapping adapters and extenders. Plus, a powerful motor, durable build, and quiet, efficient operation make the 2236 model the perfect choice for serious technicians. Powerful Versatility: Say goodbye to that drawer full of adapters for good. The Ingersoll Rand 2236 Pneumatic 1/2 inch impact wrench has an interchangeable anvil system that lets you tailor your tool to whatever job is at hand — without losing a single ft-lb of power. Innovation: Ingersoll Rand’s patented Drive Xchange System helps you get more versatility, torque, and control out of your impact wrench. Torque: The 2236 series operates with 1,500 ft-lbs of breakaway torque.

Features

Versatility:     Versatility meets power in the new Ingersoll Rand 1/2″ pneumatic impact wrench. The pending -patented Drive Xchange System™ lets you switch out anvils without clunky adapters that drain your tool’s power.

Innovation:     With 10 different available drive options including 3/8″, 1/2″, and 3/4″ standard length and five extended lengths from 2 to 10 inches, you can do more work with less equipment.

Torque:     The 2236 series impact wrench operates powerfully with 1,500 ft-lbs of breakaway torque – 200 more ft-lbs than its predecessor.

Durable:     Thanks to a patent-pending 2-piece anvil system, you can directly grease the tool’s hammers for increased run time. The iconic titanium hammer case returns in the 2236 series for more unyielding durability.

Strength:     A patented-pending increased dwell motor gives the tool more airflow and raw power.

Quiet:         A new airflow path design helps make this impact wrench 4 decibels quieter from a patented motor design.

Model Specifications

Model Configuration Actuation Drive Size (in) Drive Type Breakaway Torque ft-lb (Nm) Max Reverse Torque ft-lb (Nm) Blows per Minute Max Free Speed (RPM) Impacting Sound Level dB(A) (pressure/power) Weight lbs (kg) Length in (mm) Air Inlet NPT (in) Min Hose Size in (mm)
2236QTIMAX Pistol Trigger 1/2 Square 1500 (2034) 1000 (1356) 1350 8500 94.2 4.4 (1.99) 7.36 (187) 1/4 3/8 (10)
